STEEL DETAILING

Precise detailing for fast and accurate fabrication and installation

2D & 3D

Our service portfolio includes producing BIM models and fabrication shop drawings for structural steel and miscellaneous steel, all in accordance with the client’s customized standards. We use two world’s leading software for steel detailing – Autodesk Advance Steel and Tekla Structures, providing import-ready models for different software packages.

READ MORE

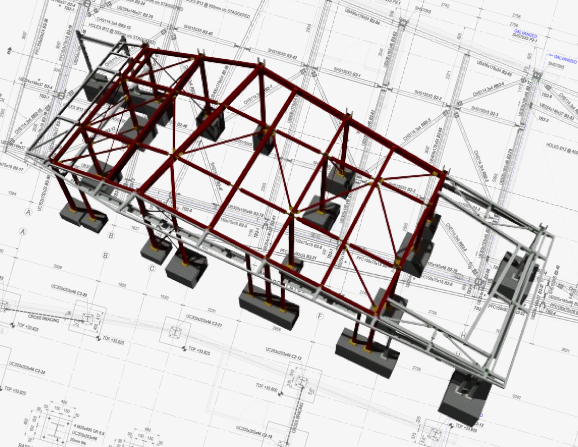

Beyond Steel Detailing

We go beyond typical steel detailing services. Our structural engineering background enables us to approach each project differently from other companies. We do not simply apply basic software options - we dive into our extensive knowledge to meet specific and unique requirements.

READ MORE

Full Fabrication Package

Our steel detailing services are customized to client requirements and a standard package typically includes liaison with structural engineers and architects, 3D modelling, GA drawings for approval and for construction, 3D marking plans, BOMs, NC files and CAM files, customized drawing borders, single part drawings, assembly drawings, RFIs, document registers
