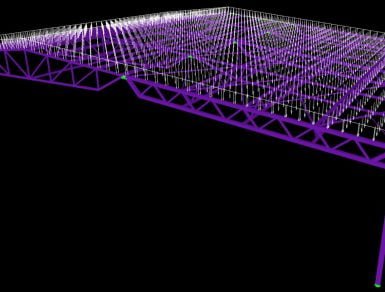

Steel roof structure of existing building and canopy in front of the building. The client defined the minimum height clearance due to the possibility of manipulating the vehicle under the canopy, and the walls of the existing building defined the height in the ridge. The adopted system consists of 3 columns and the spans are 9.5x9m.




  • Architectural design
  • Structural design
  • Connection design
  • 3D BIM modelling
  • Steel detailing
Roof truss design
